PLC & HMI

H0U Economic, Small PLC&HMI Integrated

• PLC and Text HMI combined
• Basic instruction: 100ns/instruction
• Program capacity
• PLC: 8K Steps
• Text HMI: 56KB
• Device memory: Auxiliary Relays 1792 points, Timers 256 points, Counters 256 points,Data
• Registers 8256 points
• High-speed inputs: up to 60kHz
• High-speed outputs: up to 100kHz
• 25 Keys with user defined function
• Supports RS485(MODBUS-RTU), CANlink(Inovance authorized) communication
• Supports Digital I/O, Analog I/O, Temperature detection, CAN port
• PLC programming language:
• Ladder Diagram(LD)
• Instruction List(IL)
• Sequential Function Chart(SFC)

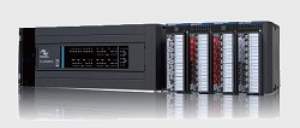

H3U High Performance Series with Motion Control

• All-in-one CPU and power supply
• supporting local and remote I/O
• Basic instruction: 100ns/instruction
• Program capacity: 64K steps Device memory, Auxiliary Relays 9216 points, Timers 512 points,
• Counters 256 points, Data Registers 9552 points, File Registers 32768 points
• High-speed inputs: up to 200kHz
• High-speed outputs: up to 500kHz
• Three-axes electronic cam(only high-end motion model)
• Standard motion: two-axes circular and point to point interpolated
• High-end motion: three-axes point to point interpolated and spiral curve
• Supports Ethernet(MODBUSTCP), RS485(MODBUS-RTU), CANopen, CANlink(Inovance authorized) communication
• Maximum of 192 digital I/O(local), 24 analog I/O(local), 7936 digital I/O(remote), 1488 analog I/O(remote)
• Programming language conforms to IEC61131-3:
• Ladder Diagram(LD)
• Instruction List(IL)
• Sequential Function Chart(SFC)

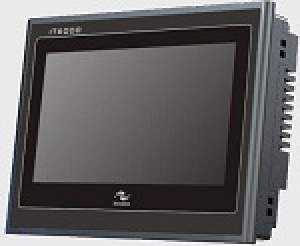

IT6000 Series 7 & 10 Inch

• 7.0" and 10.1" inches models
• High resolution display: 800 x 480
• Up to 8 different languages can be downloaded into the HMI
• Languages supported on the HMI include English, Japanese, Russian, Thai etc.
• Maximum of 3 Serial ports and 1 Ethernet port
• USB device port: Firmware &Program, History data download/upload to/from PC
• USB host port: Access to U-disk, mouse, keyboard, printer etc
• User Memory: 128 MB Flash & 128MB DDR3 SDRAM
• Supports Ethernet(MODBUS-TCP), RS485/RS422/RS232 (MODBUS-RTU)
• Security: 12 passwords, 12 users, 6 level authority
• InoTouch Editor Functions:
• Extensive gallery/icons
• Offline & Online Simulation
• Recipe data import & export
• Data sample Trend chart display
