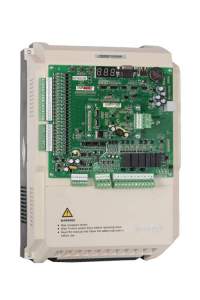

NICE 3000 PLUS
NICE 3000 PLUS Details
Power Rating:-
1. 2.2 KW To 45 KW. 3 PHASE 380/400/415V
2. 2.2 KW To 30 KW. 3 PHASE 220V
3. 2.2 KW To 30 KW, 1 PHASE 220V
Application:-
» Simplex. Duplex. 3-8 Group control elevator.
» High Speed, Medium Speed, Low Speed,
» Superior Elevator, Passenger Elevator. Medical Elevator, Residential Elevator, Disabled Elevator etc.
» Elevator rated speed <= 4.0 m/sec.
» Floor level : Each CCB can adopt up to max. 16 floors. above 16 serial link addition CCB up to 64 floors.
Technical Features:-
» Redundancy control through Mutti-CPUs. equipped with CAN Bus. Mod Bus and GSM communication technology
» Based on displacement calculation methods derive N volouty profile to achieve optim urn direct-to-point distance control
» Simple 3 wire serial communicatio n5 to commission duplex group control
» Group control with less than 8 elevators is based on fuzzy logic control theory
» in‘ built real-time clock to facilitate time-sharing control and elevator maria ge me nt
» Flexible emergency back up power; 48Vdc battery or 220Vac UPS power input makes emergency evacuation easy
» Automatic identification operation between short-floors
» Handheld Operation Tools; Mini Keypad. PDA. PC to tacilitate easy commissmning
» 60 fault codes to facilitate easy diagnostics
» Power on reset run to ground floor is not required
» Shaft position learning is standard
